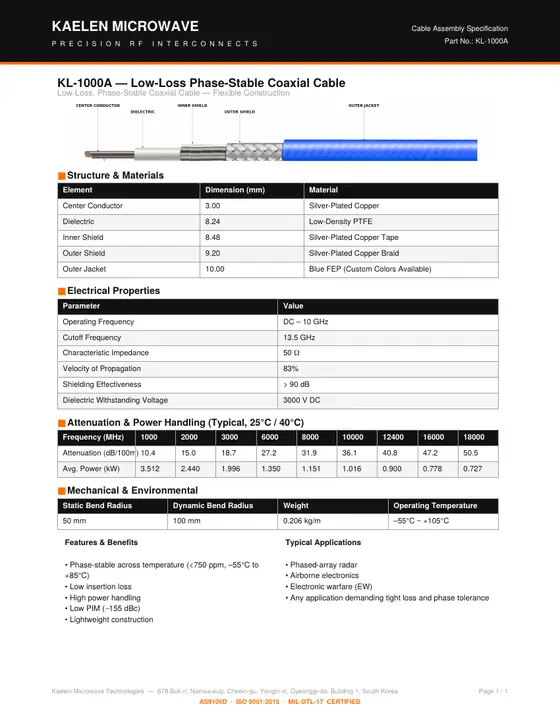

KL-1000A
Low-Loss Phase-Stable Coaxial Cable — Low-Loss, Phase-Stable Coaxial Cable — Flexible Construction
- Frequency
- DC–10 GHz
- Series
- KL-A · Flexible, low-loss, phase-stable
- Outer diameter
- 10 mm
- Attenuation @ 1 GHz
- 10.4 dB/100 m
- Operating temperature
- –55°C ~ +105°C
Structure & Materials
Electrical Properties
Attenuation & Power Handling (Typical, 25°C / 40°C)
| Frequency (MHz) | Attenuation (dB/100m) | Avg. Power (kW) |
|---|
| 1000 | 10.4 | 3.512 |
| 2000 | 15.0 | 2.440 |
| 3000 | 18.7 | 1.996 |
| 6000 | 27.2 | 1.350 |
| 8000 | 31.9 | 1.151 |
| 10000 | 36.1 | 1.016 |
| 12400 | 40.8 | 0.900 |
| 16000 | 47.2 | 0.778 |
| 18000 | 50.5 | 0.727 |
Mechanical & Environmental
| Parameter | Value |
|---|
| Static Bend Radius | 50 mm |
| Dynamic Bend Radius | 100 mm |
| Weight | 0.206 kg/m |
| Operating Temperature | –55°C ~ +105°C |
Features & benefits
- Phase-stable across temperature (<750 ppm, –55°C to +85°C)
- Low insertion loss
- High power handling
- Low PIM (−155 dBc)
- Lightweight construction
Typical applications
- Phased-array radar
- Airborne electronics
- Electronic warfare (EW)
- Any application demanding tight loss and phase tolerance
Related parts
Need this cable terminated? Request a custom assembly using KL-1000A.
