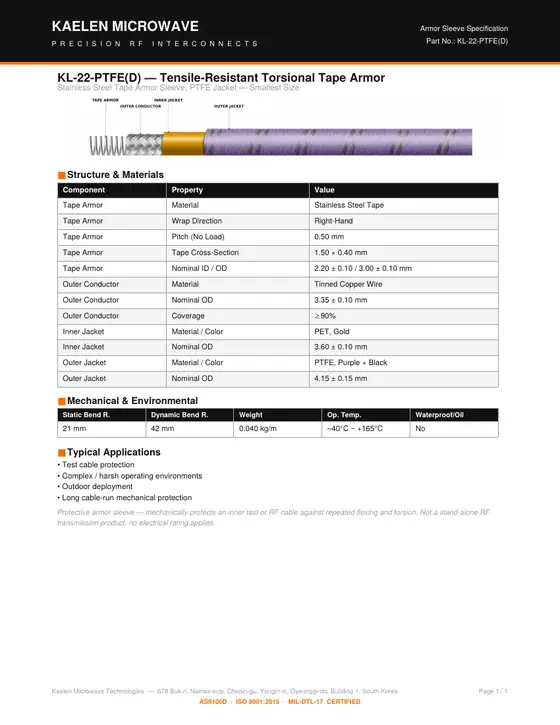

KL-22-PTFE(D)
Tensile-Resistant Torsional Tape Armor — Stainless Steel Tape Armor Sleeve, PTFE Jacket — Smallest Size
- Outer diameter
- 4.15 mm
Structure & Materials
| Component | Property | Value |
|---|---|---|
| Tape Armor | Material | Stainless Steel Tape |
| Tape Armor | Wrap Direction | Right-Hand |
| Tape Armor | Pitch (No Load) | 0.50 mm |
| Tape Armor | Tape Cross-Section | 1.50 × 0.40 mm |
| Tape Armor | Nominal ID / OD | 2.20 ± 0.10 / 3.00 ± 0.10 mm |
| Outer Conductor | Material | Tinned Copper Wire |
| Outer Conductor | Nominal OD | 3.35 ± 0.10 mm |
| Outer Conductor | Coverage | ≥ 90% |
| Inner Jacket | Material / Color | PET, Gold |
| Inner Jacket | Nominal OD | 3.60 ± 0.10 mm |
| Outer Jacket | Material / Color | PTFE, Purple + Black |
| Outer Jacket | Nominal OD | 4.15 ± 0.15 mm |
Mechanical & Environmental
| Parameter | Value |
|---|---|
| Static Bend R. | 21 mm |
| Dynamic Bend R. | 42 mm |
| Weight | 0.040 kg/m |
| Op. Temp. | –40°C ~ +165°C |
| Waterproof/Oil | No |
Typical Applications
• Test cable protection • Complex / harsh operating environments • Outdoor deployment • Long cable-run mechanical protection Protective armor sleeve — mechanically protects an inner test or RF cable against repeated flexing and torsion. Not a stand-alone RF transmission product; no electrical rating applies.
