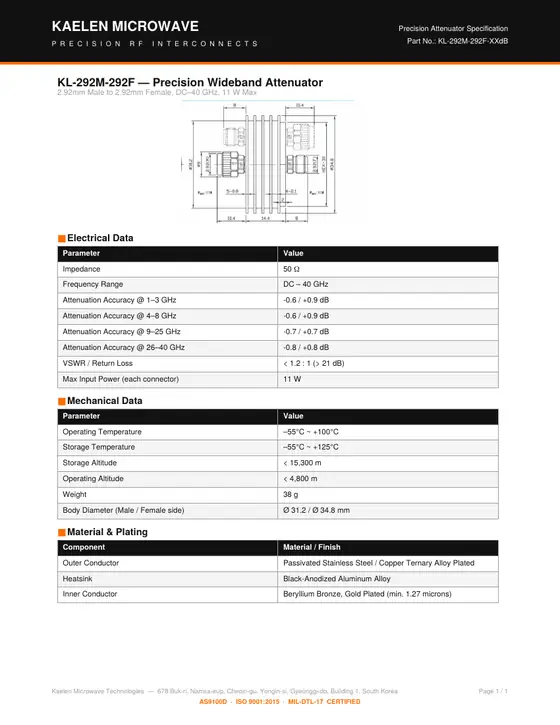

KL-292M-292F-XXdB
Precision Wideband Attenuator — 2.92mm Male to 2.92mm Female, DC–40 GHz, 11 W Max
- Frequency
- DC–40 GHz
- Interface
- 2.92mm
- Configuration
- Male – Female
- Power
- 11 W
- Attenuation
- Selected at order
Electrical Data
| Parameter | Value |
|---|---|
| Impedance | 50 Ω |
| Frequency Range | DC – 40 GHz |
| Attenuation Accuracy @ 1–3 GHz | -0.6 / +0.9 dB |
| Attenuation Accuracy @ 4–8 GHz | -0.6 / +0.9 dB |
| Attenuation Accuracy @ 9–25 GHz | -0.7 / +0.7 dB |
| Attenuation Accuracy @ 26–40 GHz | -0.8 / +0.8 dB |
| VSWR / Return Loss | < 1.2 : 1 (> 21 dB) |
| Max Input Power (each connector) | 11 W |
Mechanical Data
| Parameter | Value |
|---|---|
| Operating Temperature | –55°C ~ +100°C |
| Storage Temperature | –55°C ~ +125°C |
| Storage Altitude | < 15,300 m |
| Operating Altitude | < 4,800 m |
| Weight | 38 g |
| Body Diameter (Male / Female side) | Ø 31.2 / Ø 34.8 mm |
Material & Plating
| Component | Material / Finish |
|---|---|
| Outer Conductor | Passivated Stainless Steel / Copper Ternary Alloy Plated |
| Heatsink | Black-Anodized Aluminum Alloy |
| Inner Conductor | Beryllium Bronze, Gold Plated (min. 1.27 microns) |
