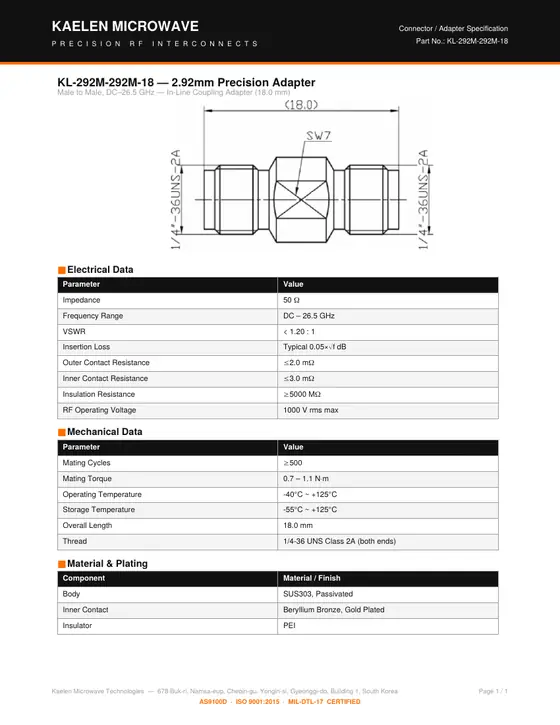

KL-292M-292M-18
2.92mm Precision Adapter — Male to Male, DC–26.5 GHz — In-Line Coupling Adapter (18.0 mm)
- Frequency
- DC–26.5 GHz
- Interface
- 2.92mm
- Configuration
- Male – Male
- Overall length
- 18 mm
Electrical Data
| Parameter | Value |
|---|---|
| Impedance | 50 Ω |
| Frequency Range | DC – 26.5 GHz |
| VSWR | < 1.20 : 1 |
| Insertion Loss | Typical 0.05×√f dB |
| Outer Contact Resistance | ≤ 2.0 mΩ |
| Inner Contact Resistance | ≤ 3.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| RF Operating Voltage | 1000 V rms max |
Mechanical Data
| Parameter | Value |
|---|---|
| Mating Cycles | ≥ 500 |
| Mating Torque | 0.7 – 1.1 N·m |
| Operating Temperature | -40°C ~ +125°C |
| Storage Temperature | -55°C ~ +125°C |
| Overall Length | 18.0 mm |
| Thread | 1/4-36 UNS Class 2A (both ends) |
Material & Plating
| Component | Material / Finish |
|---|---|
| Body | SUS303, Passivated |
| Inner Contact | Beryllium Bronze, Gold Plated |
| Insulator | PEI |
