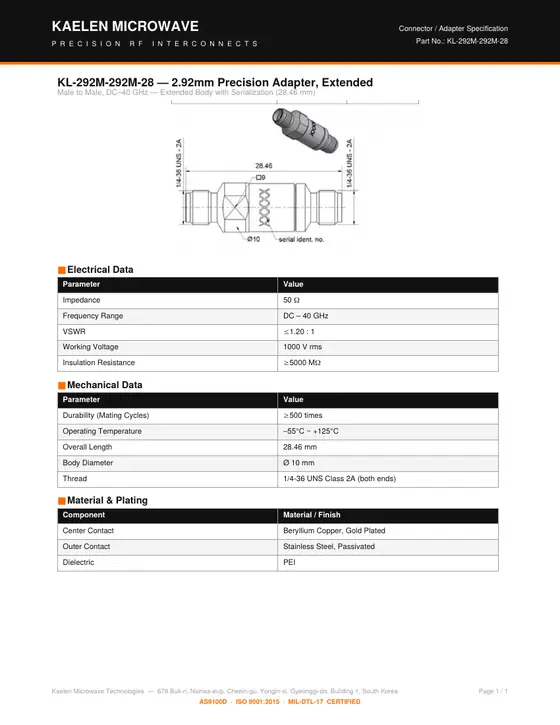

KL-292M-292M-28
2.92mm Precision Adapter, Extended — Male to Male, DC–40 GHz — Extended Body with Serialization (28.46 mm)
- Frequency
- DC–40 GHz
- Interface
- 2.92mm
- Configuration
- Male – Male
- Overall length
- 28.46 mm
Electrical Data
| Parameter | Value |
|---|---|
| Impedance | 50 Ω |
| Frequency Range | DC – 40 GHz |
| VSWR | ≤ 1.20 : 1 |
| Working Voltage | 1000 V rms |
| Insulation Resistance | ≥ 5000 MΩ |
Mechanical Data
| Parameter | Value |
|---|---|
| Durability (Mating Cycles) | ≥ 500 times |
| Operating Temperature | –55°C ~ +125°C |
| Overall Length | 28.46 mm |
| Body Diameter | Ø 10 mm |
| Thread | 1/4-36 UNS Class 2A (both ends) |
Material & Plating
| Component | Material / Finish |
|---|---|
| Center Contact | Beryllium Copper, Gold Plated |
| Outer Contact | Stainless Steel, Passivated |
| Dielectric | PEI |
