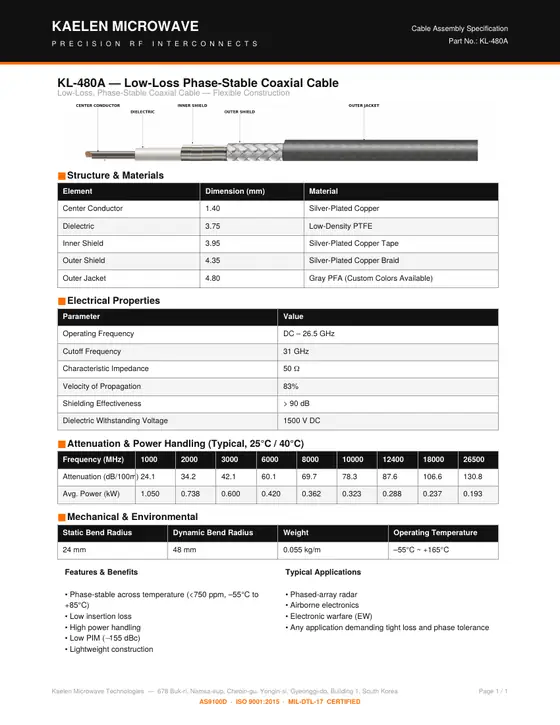

KL-480A
Low-Loss Phase-Stable Coaxial Cable — Low-Loss, Phase-Stable Coaxial Cable — Flexible Construction
- Frequency
- DC–26.5 GHz
- Series
- KL-A · Flexible, low-loss, phase-stable
- Outer diameter
- 4.8 mm
- Attenuation @ 1 GHz
- 24.1 dB/100 m
- Operating temperature
- –55°C ~ +165°C
Structure & Materials
Electrical Properties
Attenuation & Power Handling (Typical, 25°C / 40°C)
| Frequency (MHz) | Attenuation (dB/100m) | Avg. Power (kW) |
|---|
| 1000 | 24.1 | 1.050 |
| 2000 | 34.2 | 0.738 |
| 3000 | 42.1 | 0.600 |
| 6000 | 60.1 | 0.420 |
| 8000 | 69.7 | 0.362 |
| 10000 | 78.3 | 0.323 |
| 12400 | 87.6 | 0.288 |
| 18000 | 106.6 | 0.237 |
| 26500 | 130.8 | 0.193 |
Mechanical & Environmental
| Parameter | Value |
|---|
| Static Bend Radius | 24 mm |
| Dynamic Bend Radius | 48 mm |
| Weight | 0.055 kg/m |
| Operating Temperature | –55°C ~ +165°C |
Features & benefits
- Phase-stable across temperature (<750 ppm, –55°C to +85°C)
- Low insertion loss
- High power handling
- Low PIM (−155 dBc)
- Lightweight construction
Typical applications
- Phased-array radar
- Airborne electronics
- Electronic warfare (EW)
- Any application demanding tight loss and phase tolerance
Related parts
Need this cable terminated? Request a custom assembly using KL-480A.
