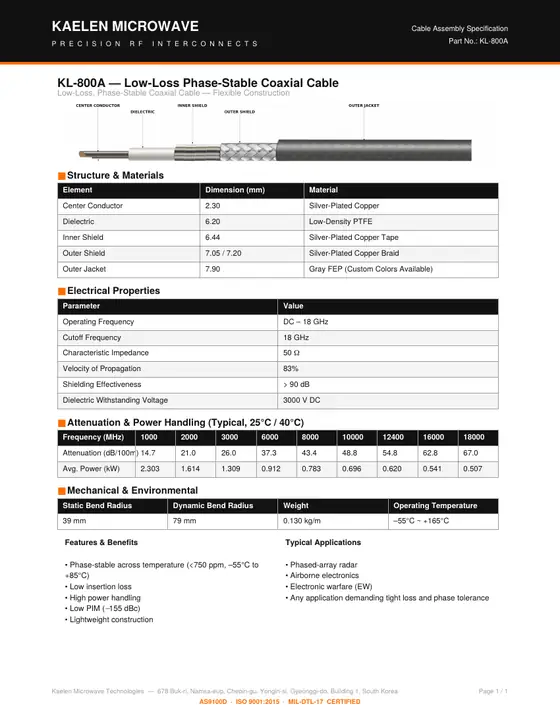

KL-800A
Low-Loss Phase-Stable Coaxial Cable — Low-Loss, Phase-Stable Coaxial Cable — Flexible Construction
- Frequency
- DC–18 GHz
- Series
- KL-A · Flexible, low-loss, phase-stable
- Outer diameter
- 7.9 mm
- Attenuation @ 1 GHz
- 14.7 dB/100 m
- Operating temperature
- –55°C ~ +165°C
Structure & Materials
Electrical Properties
Attenuation & Power Handling (Typical, 25°C / 40°C)
| Frequency (MHz) | Attenuation (dB/100m) | Avg. Power (kW) |
|---|
| 1000 | 14.7 | 2.303 |
| 2000 | 21.0 | 1.614 |
| 3000 | 26.0 | 1.309 |
| 6000 | 37.3 | 0.912 |
| 8000 | 43.4 | 0.783 |
| 10000 | 48.8 | 0.696 |
| 12400 | 54.8 | 0.620 |
| 16000 | 62.8 | 0.541 |
| 18000 | 67.0 | 0.507 |
Mechanical & Environmental
| Parameter | Value |
|---|
| Static Bend Radius | 39 mm |
| Dynamic Bend Radius | 79 mm |
| Weight | 0.130 kg/m |
| Operating Temperature | –55°C ~ +165°C |
Features & benefits
- Phase-stable across temperature (<750 ppm, –55°C to +85°C)
- Low insertion loss
- High power handling
- Low PIM (−155 dBc)
- Lightweight construction
Typical applications
- Phased-array radar
- Airborne electronics
- Electronic warfare (EW)
- Any application demanding tight loss and phase tolerance
