KL-830A-SMAM-SMAF-1500

SMA Male to SMA Female — RF cable assembly

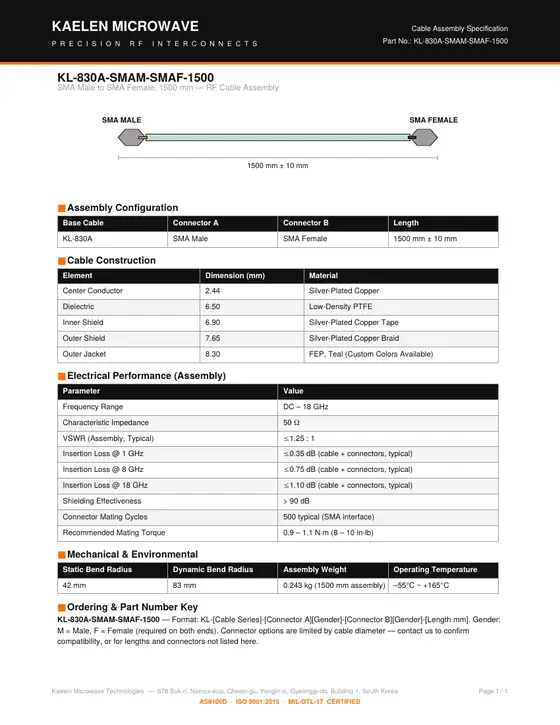

Download datasheet (PDF, 5 KB)Request a quote

Frequency: DC–18 GHz
Base cable: KL-830A
Connector A: SMA Male
Connector B: SMA Female
Length: 1500 mm

Assembly Configuration

Parameter	Value
Base Cable	KL-830A
Connector A	SMA Male
Connector B	SMA Female
Length	1500 mm ± 10 mm

Cable Construction

Element	Dimension (mm)	Material
Center Conductor	2.44	Silver-Plated Copper
Dielectric	6.50	Low-Density PTFE
Inner Shield	6.90	Silver-Plated Copper Tape
Outer Shield	7.65	Silver-Plated Copper Braid
Outer Jacket	8.30	FEP, Teal (Custom Colors Available)

Electrical Performance (Assembly)

Parameter	Value
Frequency Range	DC – 18 GHz
Characteristic Impedance	50 Ω
VSWR (Assembly, Typical)	≤ 1.25 : 1
Insertion Loss @ 1 GHz	≤ 0.35 dB (cable + connectors, typical)
Insertion Loss @ 8 GHz	≤ 0.75 dB (cable + connectors, typical)
Insertion Loss @ 18 GHz	≤ 1.10 dB (cable + connectors, typical)
Shielding Effectiveness	> 90 dB
Connector Mating Cycles	500 typical (SMA interface)
Recommended Mating Torque	0.9 – 1.1 N·m (8 – 10 in-lb)

Mechanical & Environmental

Parameter	Value
Static Bend Radius	42 mm
Dynamic Bend Radius	83 mm
Assembly Weight	0.243 kg (1500 mm assembly)
Operating Temperature	–55°C ~ +165°C

Ordering & Part Number Key

KL-830A-SMAM-SMAF-1500 — Format: KL-[Cable Series]-[Connector A][Gender]-[Connector B][Gender]-[Length mm]. Gender: M = Male, F = Female (required on both ends). Connector options are limited by cable diameter — contact us to confirm compatibility, or for lengths and connectors not listed here.
