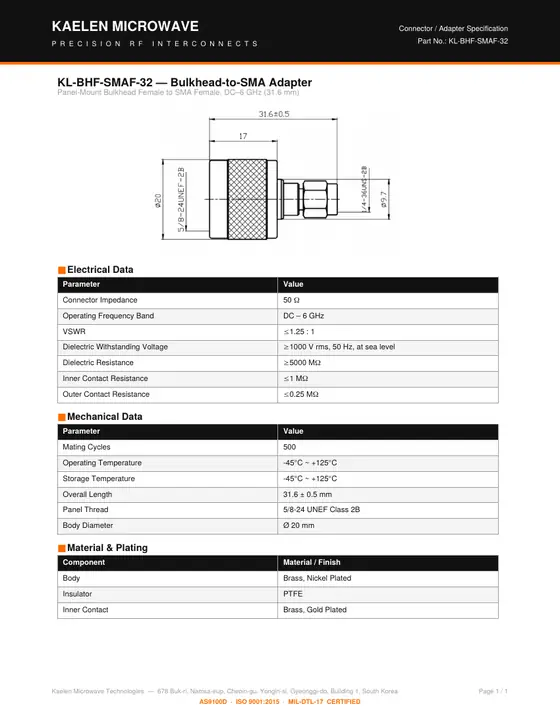

KL-BHF-SMAF-32
Bulkhead-to-SMA Adapter — Panel-Mount Bulkhead Female to SMA Female, DC–6 GHz (31.6 mm)
- Frequency
- DC–6 GHz
- Interface
- SMA
- Configuration
- Bulkhead Female – SMA Female
- Overall length
- 31.6 mm
Electrical Data
| Parameter | Value |
|---|---|
| Connector Impedance | 50 Ω |
| Operating Frequency Band | DC – 6 GHz |
| VSWR | ≤ 1.25 : 1 |
| Dielectric Withstanding Voltage | ≥ 1000 V rms, 50 Hz, at sea level |
| Dielectric Resistance | ≥ 5000 MΩ |
| Inner Contact Resistance | ≤ 1 MΩ |
| Outer Contact Resistance | ≤ 0.25 MΩ |
Mechanical Data
| Parameter | Value |
|---|---|
| Mating Cycles | 500 |
| Operating Temperature | -45°C ~ +125°C |
| Storage Temperature | -45°C ~ +125°C |
| Overall Length | 31.6 ± 0.5 mm |
| Panel Thread | 5/8-24 UNEF Class 2B |
| Body Diameter | Ø 20 mm |
Material & Plating
| Component | Material / Finish |
|---|---|
| Body | Brass, Nickel Plated |
| Insulator | PTFE |
| Inner Contact | Brass, Gold Plated |
