KL-N-200W-124G-XXdB
High-Power Coaxial Attenuator — N Male to N Female, 200 W, DC–12.4 GHz — Finned Heatsink Body
- Frequency
- DC–12.4 GHz
- Interface
- N
- Configuration
- Male – Female
- Power
- 200 W
- Attenuation
- 10 – 60 dB
Electrical Data
| Parameter | Value |
|---|---|
| Impedance | 50 Ω |
| Frequency Range | DC – 12.4 GHz |
| Attenuation Range | 10 – 60 dB |
| VSWR | ≤ 1.35 : 1 max |
| Input Power (Average, 25°C) | 200 W |
Power Derating

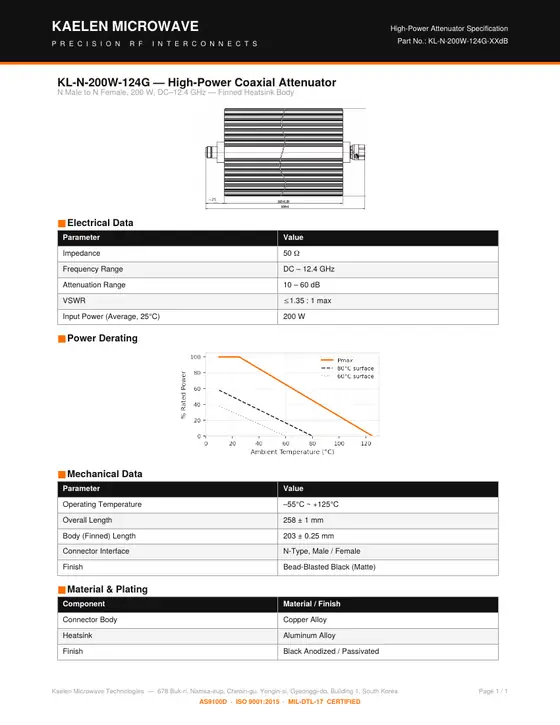

See the datasheet for the curve.
Mechanical Data
| Parameter | Value |
|---|---|
| Operating Temperature | –55°C ~ +125°C |
| Overall Length | 258 ± 1 mm |
| Body (Finned) Length | 203 ± 0.25 mm |
| Connector Interface | N-Type, Male / Female |
| Finish | Bead-Blasted Black (Matte) |
Material & Plating
| Component | Material / Finish |
|---|---|
| Connector Body | Copper Alloy |
| Heatsink | Aluminum Alloy |
| Finish | Black Anodized / Passivated |
