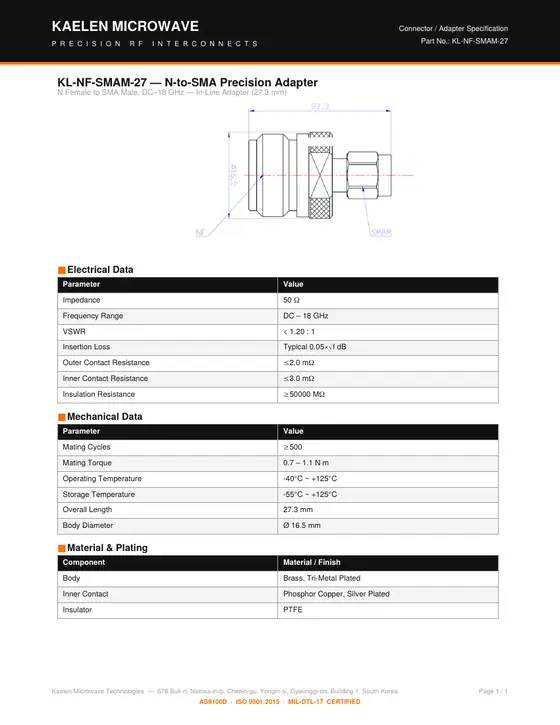

KL-NF-SMAM-27
N-to-SMA Precision Adapter — N Female to SMA Male, DC–18 GHz — In-Line Adapter (27.3 mm)
- Frequency
- DC–18 GHz
- Interface
- N / SMA
- Configuration
- N Female – SMA Male
- Overall length
- 27.3 mm
Electrical Data
| Parameter | Value |
|---|---|
| Impedance | 50 Ω |
| Frequency Range | DC – 18 GHz |
| VSWR | < 1.20 : 1 |
| Insertion Loss | Typical 0.05×√f dB |
| Outer Contact Resistance | ≤ 2.0 mΩ |
| Inner Contact Resistance | ≤ 3.0 mΩ |
| Insulation Resistance | ≥ 50000 MΩ |
Mechanical Data
| Parameter | Value |
|---|---|
| Mating Cycles | ≥ 500 |
| Mating Torque | 0.7 – 1.1 N·m |
| Operating Temperature | -40°C ~ +125°C |
| Storage Temperature | -55°C ~ +125°C |
| Overall Length | 27.3 mm |
| Body Diameter | Ø 16.5 mm |
Material & Plating
| Component | Material / Finish |
|---|---|
| Body | Brass, Tri-Metal Plated |
| Inner Contact | Phosphor Copper, Silver Plated |
| Insulator | PTFE |
