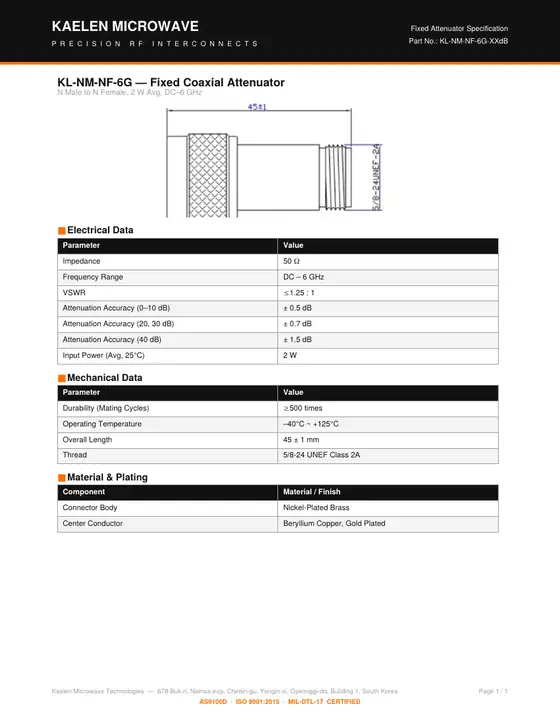

KL-NM-NF-6G-XXdB
Fixed Coaxial Attenuator — N Male to N Female, 2 W Avg, DC–6 GHz
- Frequency
- DC–6 GHz
- Interface
- N
- Configuration
- Male – Female
- Power
- 2 W
- Attenuation
- Selected at order
Electrical Data
| Parameter | Value |
|---|---|
| Impedance | 50 Ω |
| Frequency Range | DC – 6 GHz |
| VSWR | ≤ 1.25 : 1 |
| Attenuation Accuracy (0–10 dB) | ± 0.5 dB |
| Attenuation Accuracy (20, 30 dB) | ± 0.7 dB |
| Attenuation Accuracy (40 dB) | ± 1.5 dB |
| Input Power (Avg, 25°C) | 2W |
Mechanical Data
| Parameter | Value |
|---|---|
| Durability (Mating Cycles) | ≥ 500 times |
| Operating Temperature | –40°C ~ +125°C |
| Overall Length | 45 ± 1 mm |
| Thread | 5/8-24 UNEF Class 2A |
Material & Plating
| Component | Material / Finish |
|---|---|
| Connector Body | Nickel-Plated Brass |
| Center Conductor | Beryllium Copper, Gold Plated |
