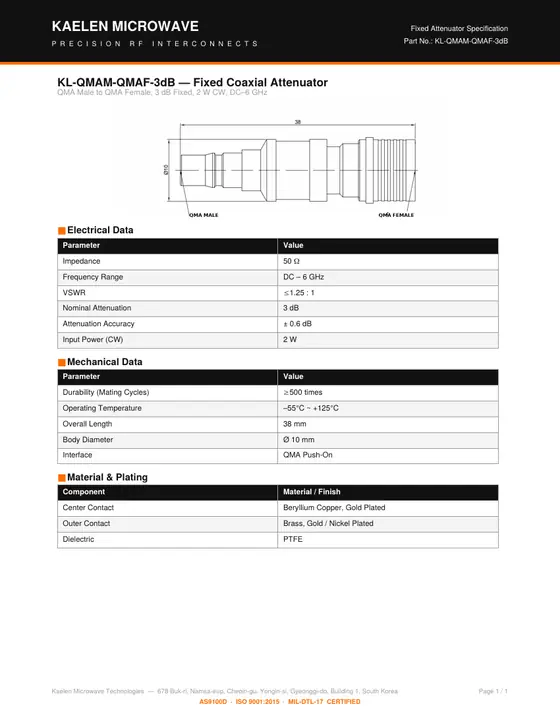

KL-QMAM-QMAF-3dB
Fixed Coaxial Attenuator — QMA Male to QMA Female, 3 dB Fixed, 2 W CW, DC–6 GHz
- Frequency
- DC–6 GHz
- Interface
- QMA
- Configuration
- Male – Female
- Power
- 2 W
- Attenuation
- 3 dB fixed
Electrical Data
| Parameter | Value |
|---|---|
| Impedance | 50 Ω |
| Frequency Range | DC – 6 GHz |
| VSWR | ≤ 1.25 : 1 |
| Nominal Attenuation | 3 dB |
| Attenuation Accuracy | ± 0.6 dB |
| Input Power (CW) | 2W |
Mechanical Data
| Parameter | Value |
|---|---|
| Durability (Mating Cycles) | ≥ 500 times |
| Operating Temperature | –55°C ~ +125°C |
| Overall Length | 38 mm |
| Body Diameter | Ø 10 mm |
| Interface | QMA Push-On |
Material & Plating
| Component | Material / Finish |
|---|---|
| Center Contact | Beryllium Copper, Gold Plated |
| Outer Contact | Brass, Gold / Nickel Plated |
| Dielectric | PTFE |
