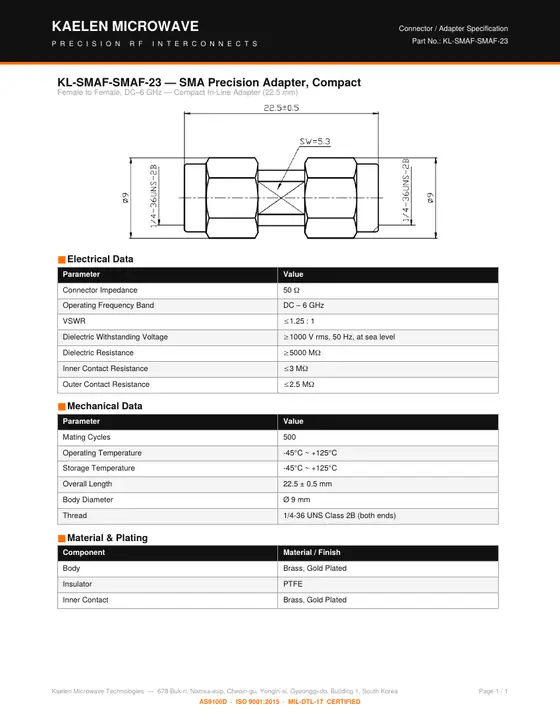

KL-SMAF-SMAF-23
SMA Precision Adapter, Compact — Female to Female, DC–6 GHz — Compact In-Line Adapter (22.5 mm)
- Frequency
- DC–6 GHz
- Interface
- SMA
- Configuration
- Female – Female
- Overall length
- 22.5 mm
Electrical Data
| Parameter | Value |
|---|---|
| Connector Impedance | 50 Ω |
| Operating Frequency Band | DC – 6 GHz |
| VSWR | ≤ 1.25 : 1 |
| Dielectric Withstanding Voltage | ≥ 1000 V rms, 50 Hz, at sea level |
| Dielectric Resistance | ≥ 5000 MΩ |
| Inner Contact Resistance | ≤ 3 MΩ |
| Outer Contact Resistance | ≤ 2.5 MΩ |
Mechanical Data
| Parameter | Value |
|---|---|
| Mating Cycles | 500 |
| Operating Temperature | -45°C ~ +125°C |
| Storage Temperature | -45°C ~ +125°C |
| Overall Length | 22.5 ± 0.5 mm |
| Body Diameter | Ø 9 mm |
| Thread | 1/4-36 UNS Class 2B (both ends) |
Material & Plating
| Component | Material / Finish |
|---|---|
| Body | Brass, Gold Plated |
| Insulator | PTFE |
| Inner Contact | Brass, Gold Plated |
