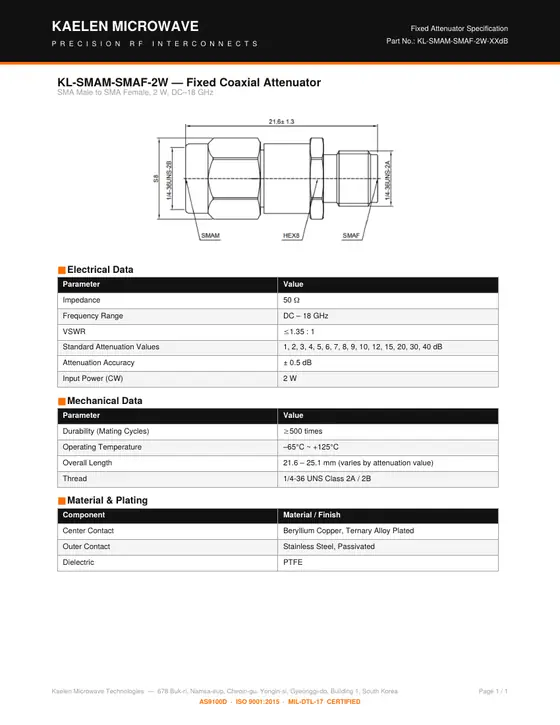

KL-SMAM-SMAF-2W-XXdB
Fixed Coaxial Attenuator — SMA Male to SMA Female, 2 W, DC–18 GHz
- Frequency
- DC–18 GHz
- Interface
- SMA
- Configuration
- Male – Female
- Power
- 2 W
- Attenuation
- Selectable, 1–40 dB
Electrical Data
| Parameter | Value |
|---|---|
| Impedance | 50 Ω |
| Frequency Range | DC – 18 GHz |
| VSWR | ≤ 1.35 : 1 |
| Standard Attenuation Values | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 30, 40 dB |
| Attenuation Accuracy | ± 0.5 dB |
| Input Power (CW) | 2W |
Mechanical Data
| Parameter | Value |
|---|---|
| Durability (Mating Cycles) | ≥ 500 times |
| Operating Temperature | –65°C ~ +125°C |
| Overall Length | 21.6 – 25.1 mm (varies by attenuation value) |
| Thread | 1/4-36 UNS Class 2A / 2B |
Material & Plating
| Component | Material / Finish |
|---|---|
| Center Contact | Beryllium Copper, Ternary Alloy Plated |
| Outer Contact | Stainless Steel, Passivated |
| Dielectric | PTFE |
