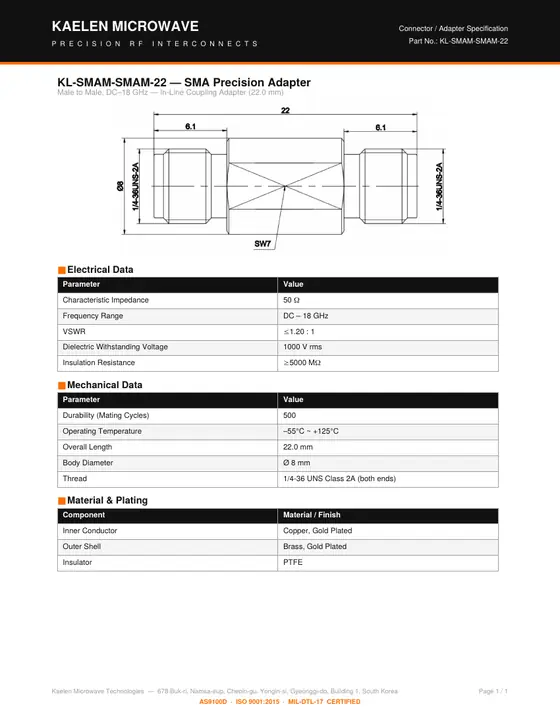

KL-SMAM-SMAM-22
SMA Precision Adapter — Male to Male, DC–18 GHz — In-Line Coupling Adapter (22.0 mm)
- Frequency
- DC–18 GHz
- Interface
- SMA
- Configuration
- Male – Male
- Overall length
- 22 mm
Electrical Data
| Parameter | Value |
|---|---|
| Characteristic Impedance | 50 Ω |
| Frequency Range | DC – 18 GHz |
| VSWR | ≤ 1.20 : 1 |
| Dielectric Withstanding Voltage | 1000 V rms |
| Insulation Resistance | ≥ 5000 MΩ |
Mechanical Data
| Parameter | Value |
|---|---|
| Durability (Mating Cycles) | 500 |
| Operating Temperature | –55°C ~ +125°C |
| Overall Length | 22.0 mm |
| Body Diameter | Ø 8 mm |
| Thread | 1/4-36 UNS Class 2A (both ends) |
Material & Plating
| Component | Material / Finish |
|---|---|
| Inner Conductor | Copper, Gold Plated |
| Outer Shell | Brass, Gold Plated |
| Insulator | PTFE |
