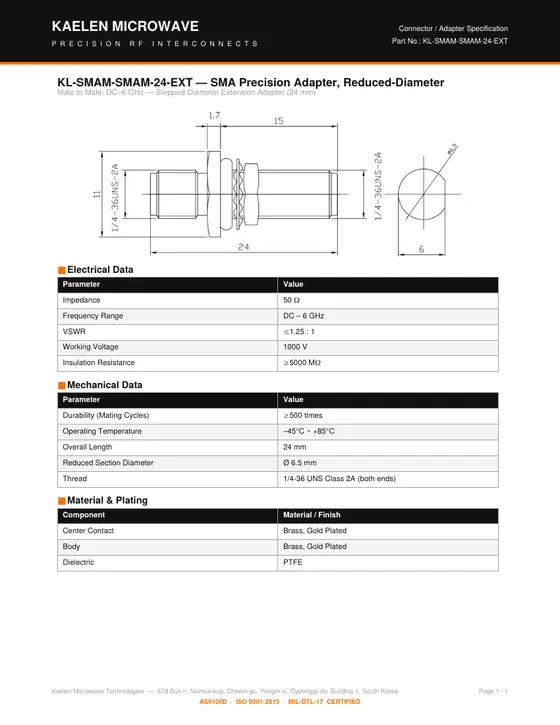

KL-SMAM-SMAM-24-EXT
SMA Precision Adapter, Reduced-Diameter — Male to Male, DC–6 GHz — Stepped-Diameter Extension Adapter (24 mm)
- Frequency
- DC–6 GHz
- Interface
- SMA
- Configuration
- Male – Male
- Overall length
- 24 mm
Electrical Data
| Parameter | Value |
|---|---|
| Impedance | 50 Ω |
| Frequency Range | DC – 6 GHz |
| VSWR | ≤ 1.25 : 1 |
| Working Voltage | 1000 V |
| Insulation Resistance | ≥ 5000 MΩ |
Mechanical Data
| Parameter | Value |
|---|---|
| Durability (Mating Cycles) | ≥ 500 times |
| Operating Temperature | –45°C ~ +85°C |
| Overall Length | 24 mm |
| Reduced Section Diameter | Ø 6.5 mm |
| Thread | 1/4-36 UNS Class 2A (both ends) |
Material & Plating
| Component | Material / Finish |
|---|---|
| Center Contact | Brass, Gold Plated |
| Body | Brass, Gold Plated |
| Dielectric | PTFE |
