KL-500AW

Solid-Type Phase-Stable Coaxial Cable — Solid-Type, Low-Loss, Phase-Stable Coaxial Cable — Reinforced Construction

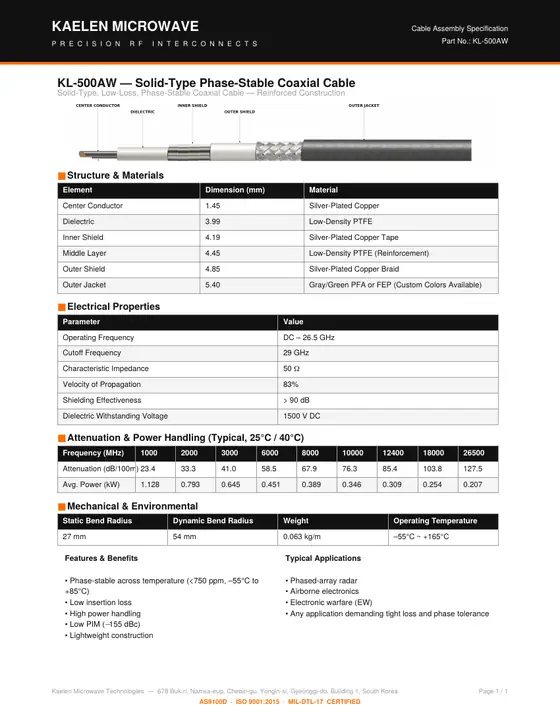

Download datasheet (PDF, 483 KB)Request a quote
Frequency
DC–26.5 GHz
Series
KL-AW · Solid-type, low-loss, phase-stable
Outer diameter
5.4 mm
Attenuation @ 1 GHz
23.4 dB/100 m
Operating temperature
–55°C ~ +165°C

Structure & Materials

ElementDimension (mm)Material
Center Conductor1.45Silver-Plated Copper
Dielectric3.99Low-Density PTFE
Inner Shield4.19Silver-Plated Copper Tape
Middle Layer4.45Low-Density PTFE (Reinforcement)
Outer Shield4.85Silver-Plated Copper Braid
Outer Jacket5.40Gray/Green PFA or FEP (Custom Colors Available)

Electrical Properties

ParameterValue
Operating FrequencyDC – 26.5 GHz
Cutoff Frequency29 GHz
Characteristic Impedance50 Ω
Velocity of Propagation83%
Shielding Effectiveness> 90 dB
Dielectric Withstanding Voltage1500 V DC

Attenuation & Power Handling (Typical, 25°C / 40°C)

Frequency (MHz)Attenuation (dB/100m)Avg. Power (kW)
100023.41.128
200033.30.793
300041.00.645
600058.50.451
800067.90.389
1000076.30.346
1240085.40.309
18000103.80.254
26500127.50.207

Mechanical & Environmental

ParameterValue
Static Bend Radius27 mm
Dynamic Bend Radius54 mm
Weight0.063 kg/m
Operating Temperature–55°C ~ +165°C

Features & benefits

  • Phase-stable across temperature (<750 ppm, –55°C to +85°C)
  • Low insertion loss
  • High power handling
  • Low PIM (−155 dBc)
  • Lightweight construction

Typical applications

  • Phased-array radar
  • Airborne electronics
  • Electronic warfare (EW)
  • Any application demanding tight loss and phase tolerance

Related parts

Need this cable terminated? Request a custom assembly using KL-500AW.
