KL-610AWPreliminary

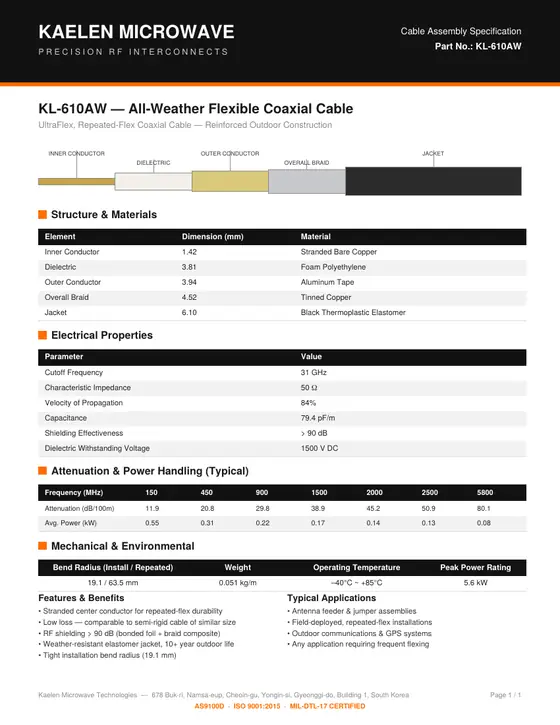

All-Weather Flexible Coaxial Cable — UltraFlex, Repeated-Flex Coaxial Cable — Reinforced Outdoor Construction
Preliminary data. The figures for this part come from supplier source data and are pending verification on Kaelen production units. Please contact us to confirm values before design-in.
Attenuation tabulated to 5.8 GHz; no operating band stated on datasheet.
- Frequency
- DC–5.8 GHz
- Series
- KL-AW · Solid-type, low-loss, phase-stable
- Outer diameter
- 6.1 mm
- Operating temperature
- –40°C ~ +85°C
Structure & Materials
| Element | Dimension (mm) | Material |
|---|---|---|
| Inner Conductor | 1.42 | Stranded Bare Copper |
| Dielectric | 3.81 | Foam Polyethylene |
| Outer Conductor | 3.94 | Aluminum Tape |
| Overall Braid | 4.52 | Tinned Copper |
| Jacket | 6.10 | Black Thermoplastic Elastomer |
Electrical Properties
| Parameter | Value |
|---|---|
| Cutoff Frequency | 31 GHz |
| Characteristic Impedance | 50 Ω |
| Velocity of Propagation | 84% |
| Capacitance | 79.4 pF/m |
| Shielding Effectiveness | > 90 dB |
| Dielectric Withstanding Voltage | 1500 V DC |
Attenuation & Power Handling (Typical)
| Frequency (MHz) | Attenuation (dB/100m) | Avg. Power (kW) |
|---|---|---|
| 150 | 11.9 | 0.55 |
| 450 | 20.8 | 0.31 |
| 900 | 29.8 | 0.22 |
| 1500 | 38.9 | 0.17 |
| 2000 | 45.2 | 0.14 |
| 2500 | 50.9 | 0.13 |
| 5800 | 80.1 | 0.08 |
Mechanical & Environmental
| Parameter | Value |
|---|---|
| Bend Radius (Install / Repeated) | 19.1 / 63.5 mm |
| Weight | 0.051 kg/m |
| Operating Temperature | –40°C ~ +85°C |
| Peak Power Rating | 5.6 kW |
Features & benefits
- Stranded center conductor for repeated-flex durability
- Low loss — comparable to semi-rigid cable of similar size
- RF shielding > 90 dB (bonded foil + braid composite)
- Weather-resistant elastomer jacket, 10+ year outdoor life
- Tight installation bend radius (19.1 mm)
Typical applications
- Antenna feeder & jumper assemblies
- Field-deployed, repeated-flex installations
- Outdoor communications & GPS systems
- Any application requiring frequent flexing
Related parts
Need this cable terminated? Request a custom assembly using KL-610AW.
