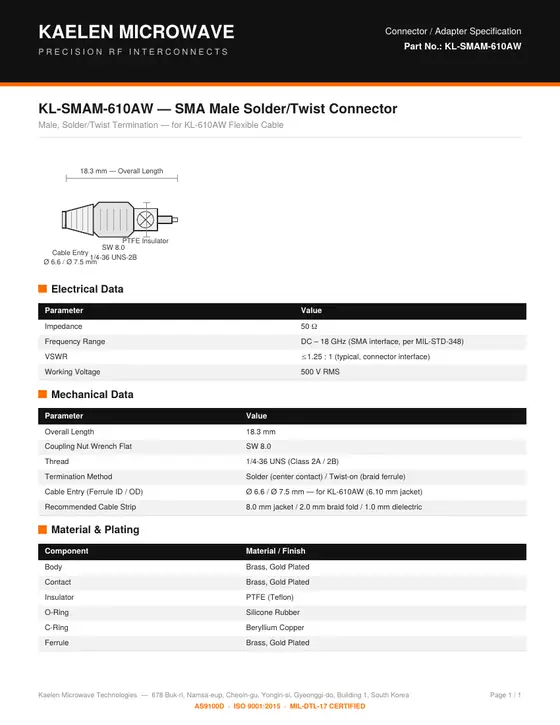

KL-SMAM-610AWPreliminary
SMA Male Solder/Twist Connector — Male, Solder/Twist Termination — for KL-610AW Flexible Cable
Preliminary data. The figures for this part come from supplier source data and are pending verification on Kaelen production units. Please contact us to confirm values before design-in.
- Frequency
- DC–18 GHz
- Interface
- SMA
- Configuration
- Male, solder/twist cable-mount
- Overall length
- 18.3 mm
Electrical Data
| Parameter | Value |
|---|---|
| Impedance | 50 Ω |
| Frequency Range | DC – 18 GHz (SMA interface, per MIL-STD-348) |
| VSWR | ≤ 1.25 : 1 (typical, connector interface) |
| Working Voltage | 500 V RMS |
Mechanical Data
| Parameter | Value |
|---|---|
| Overall Length | 18.3 mm |
| Coupling Nut Wrench Flat | SW 8.0 |
| Thread | 1/4-36 UNS (Class 2A / 2B) |
| Termination Method | Solder (center contact) / Twist-on (braid ferrule) |
| Cable Entry (Ferrule ID / OD) | Ø 6.6 / Ø 7.5 mm — for KL-610AW (6.10 mm jacket) |
| Recommended Cable Strip | 8.0 mm jacket / 2.0 mm braid fold / 1.0 mm dielectric |
Material & Plating
| Component | Material / Finish |
|---|---|
| Body | Brass, Gold Plated |
| Contact | Brass, Gold Plated |
| Insulator | PTFE (Teflon) |
| O-Ring | Silicone Rubber |
| C-Ring | Beryllium Copper |
| Ferrule | Brass, Gold Plated |
