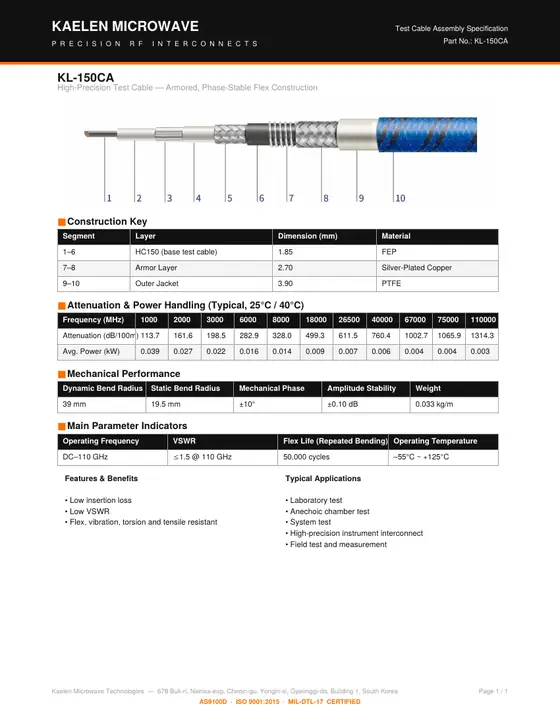

KL-150CA
High-Precision Test Cable — Armored, Phase-Stable Flex Construction
- Frequency
- DC–110 GHz
- Series
- KL-CA · Armored high-precision test cable
- Outer diameter
- 3.9 mm
- Attenuation @ 1 GHz
- 113.7 dB/100 m
Construction Key
Attenuation & Power Handling (Typical, 25°C / 40°C)
| Frequency (MHz) | Attenuation (dB/100m) | Avg. Power (kW) |
|---|
| 1000 | 113.7 | 0.039 |
| 2000 | 161.6 | 0.027 |
| 3000 | 198.5 | 0.022 |
| 6000 | 282.9 | 0.016 |
| 8000 | 328.0 | 0.014 |
| 18000 | 499.3 | 0.009 |
| 26500 | 611.5 | 0.007 |
| 40000 | 760.4 | 0.006 |
| 67000 | 1002.7 | 0.004 |
| 75000 | 1065.9 | 0.004 |
| 110000 | 1314.3 | 0.003 |
Mechanical Performance
| Parameter | Value |
|---|
| Dynamic Bend Radius | 39 mm |
| Static Bend Radius | 19.5 mm |
| Mechanical Phase | ±10° |
| Amplitude Stability | ±0.10 dB |
| Weight | 0.033 kg/m |
Main Parameter Indicators
| Parameter | Value |
|---|
| Operating Frequency | DC–110 GHz |
| VSWR | ≤ 1.5 @ 110 GHz |
| Flex Life (Repeated Bending) | 50,000 cycles |
| Operating Temperature | –55°C ~ +125°C |
Features & benefits
- Low insertion loss
- Low VSWR
- Flex, vibration, torsion and tensile resistant
Typical applications
- Laboratory test
- Anechoic chamber test
- System test
- High-precision instrument interconnect
- Field test and measurement
Related parts
Need this cable terminated? Request a custom assembly using KL-150CA.
