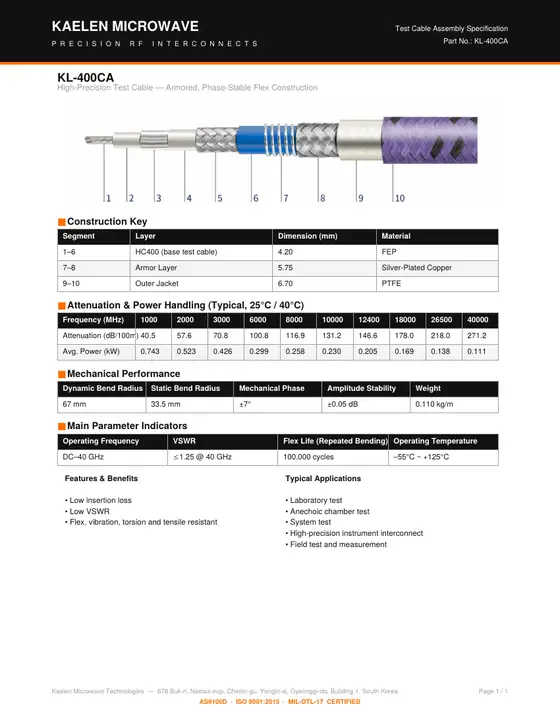

KL-400CA
High-Precision Test Cable — Armored, Phase-Stable Flex Construction
- Frequency
- DC–40 GHz
- Series
- KL-CA · Armored high-precision test cable
- Outer diameter
- 6.7 mm
- Attenuation @ 1 GHz
- 40.5 dB/100 m
Construction Key
Attenuation & Power Handling (Typical, 25°C / 40°C)
| Frequency (MHz) | Attenuation (dB/100m) | Avg. Power (kW) |
|---|
| 1000 | 40.5 | 0.743 |
| 2000 | 57.6 | 0.523 |
| 3000 | 70.8 | 0.426 |
| 6000 | 100.8 | 0.299 |
| 8000 | 116.9 | 0.258 |
| 10000 | 131.2 | 0.230 |
| 12400 | 146.6 | 0.205 |
| 18000 | 178.0 | 0.169 |
| 26500 | 218.0 | 0.138 |
| 40000 | 271.2 | 0.111 |
Mechanical Performance
| Parameter | Value |
|---|
| Dynamic Bend Radius | 67 mm |
| Static Bend Radius | 33.5 mm |
| Mechanical Phase | ±7° |
| Amplitude Stability | ±0.05 dB |
| Weight | 0.110 kg/m |
Main Parameter Indicators
| Parameter | Value |
|---|
| Operating Frequency | DC–40 GHz |
| VSWR | ≤ 1.25 @ 40 GHz |
| Flex Life (Repeated Bending) | 100,000 cycles |
| Operating Temperature | –55°C ~ +125°C |
Features & benefits
- Low insertion loss
- Low VSWR
- Flex, vibration, torsion and tensile resistant
Typical applications
- Laboratory test
- Anechoic chamber test
- System test
- High-precision instrument interconnect
- Field test and measurement
