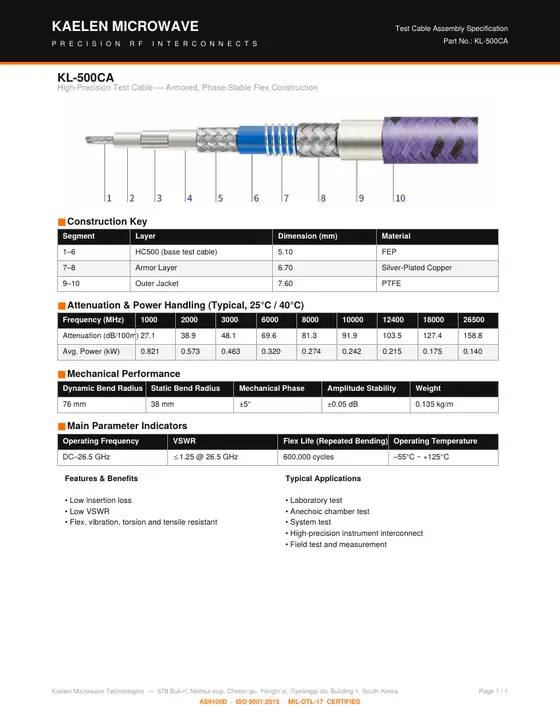

KL-500CA
High-Precision Test Cable — Armored, Phase-Stable Flex Construction
- Frequency
- DC–26.5 GHz
- Series
- KL-CA · Armored high-precision test cable
- Outer diameter
- 7.6 mm
- Attenuation @ 1 GHz
- 27.1 dB/100 m
Construction Key
Attenuation & Power Handling (Typical, 25°C / 40°C)
| Frequency (MHz) | Attenuation (dB/100m) | Avg. Power (kW) |
|---|
| 1000 | 27.1 | 0.821 |
| 2000 | 38.9 | 0.573 |
| 3000 | 48.1 | 0.463 |
| 6000 | 69.6 | 0.320 |
| 8000 | 81.3 | 0.274 |
| 10000 | 91.9 | 0.242 |
| 12400 | 103.5 | 0.215 |
| 18000 | 127.4 | 0.175 |
| 26500 | 158.8 | 0.140 |
Mechanical Performance
| Parameter | Value |
|---|
| Dynamic Bend Radius | 76 mm |
| Static Bend Radius | 38 mm |
| Mechanical Phase | ±5° |
| Amplitude Stability | ±0.05 dB |
| Weight | 0.135 kg/m |
Main Parameter Indicators
| Parameter | Value |
|---|
| Operating Frequency | DC–26.5 GHz |
| VSWR | ≤ 1.25 @ 26.5 GHz |
| Flex Life (Repeated Bending) | 600,000 cycles |
| Operating Temperature | –55°C ~ +125°C |
Features & benefits
- Low insertion loss
- Low VSWR
- Flex, vibration, torsion and tensile resistant
Typical applications
- Laboratory test
- Anechoic chamber test
- System test
- High-precision instrument interconnect
- Field test and measurement
