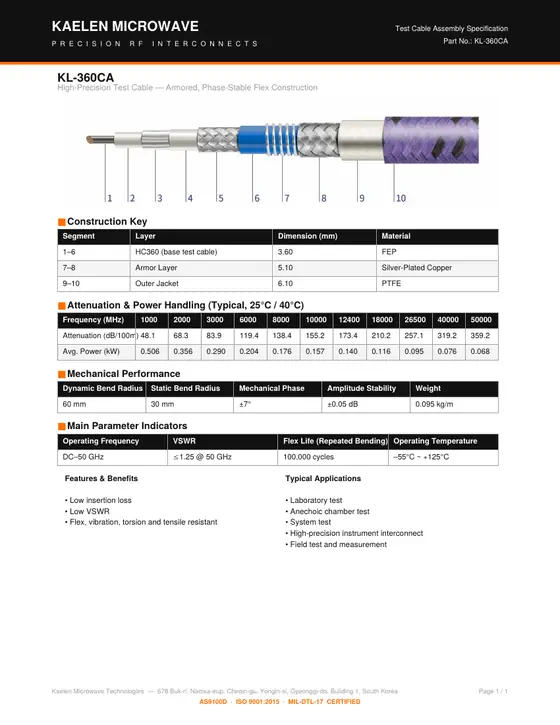

KL-360CA
High-Precision Test Cable — Armored, Phase-Stable Flex Construction
- Frequency
- DC–50 GHz
- Series
- KL-CA · Armored high-precision test cable
- Outer diameter
- 6.1 mm
- Attenuation @ 1 GHz
- 48.1 dB/100 m
Construction Key
Attenuation & Power Handling (Typical, 25°C / 40°C)
| Frequency (MHz) | Attenuation (dB/100m) | Avg. Power (kW) |
|---|
| 1000 | 48.1 | 0.506 |
| 2000 | 68.3 | 0.356 |
| 3000 | 83.9 | 0.290 |
| 6000 | 119.4 | 0.204 |
| 8000 | 138.4 | 0.176 |
| 10000 | 155.2 | 0.157 |
| 12400 | 173.4 | 0.140 |
| 18000 | 210.2 | 0.116 |
| 26500 | 257.1 | 0.095 |
| 40000 | 319.2 | 0.076 |
| 50000 | 359.2 | 0.068 |
Mechanical Performance
| Parameter | Value |
|---|
| Dynamic Bend Radius | 60 mm |
| Static Bend Radius | 30 mm |
| Mechanical Phase | ±7° |
| Amplitude Stability | ±0.05 dB |
| Weight | 0.095 kg/m |
Main Parameter Indicators
| Parameter | Value |
|---|
| Operating Frequency | DC–50 GHz |
| VSWR | ≤ 1.25 @ 50 GHz |
| Flex Life (Repeated Bending) | 100,000 cycles |
| Operating Temperature | –55°C ~ +125°C |
Features & benefits
- Low insertion loss
- Low VSWR
- Flex, vibration, torsion and tensile resistant
Typical applications
- Laboratory test
- Anechoic chamber test
- System test
- High-precision instrument interconnect
- Field test and measurement
