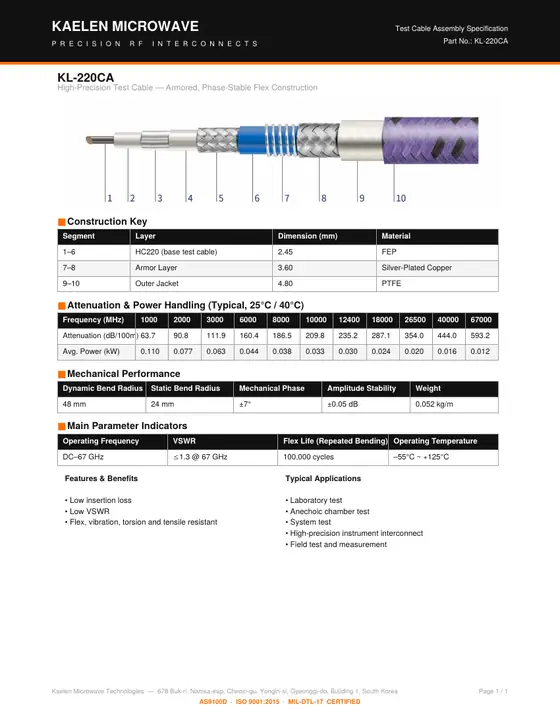

KL-220CA
High-Precision Test Cable — Armored, Phase-Stable Flex Construction
- Frequency
- DC–67 GHz
- Series
- KL-CA · Armored high-precision test cable
- Outer diameter
- 4.8 mm
- Attenuation @ 1 GHz
- 63.7 dB/100 m
Construction Key
Attenuation & Power Handling (Typical, 25°C / 40°C)
| Frequency (MHz) | Attenuation (dB/100m) | Avg. Power (kW) |
|---|
| 1000 | 63.7 | 0.110 |
| 2000 | 90.8 | 0.077 |
| 3000 | 111.9 | 0.063 |
| 6000 | 160.4 | 0.044 |
| 8000 | 186.5 | 0.038 |
| 10000 | 209.8 | 0.033 |
| 12400 | 235.2 | 0.030 |
| 18000 | 287.1 | 0.024 |
| 26500 | 354.0 | 0.020 |
| 40000 | 444.0 | 0.016 |
| 67000 | 593.2 | 0.012 |
Mechanical Performance
| Parameter | Value |
|---|
| Dynamic Bend Radius | 48 mm |
| Static Bend Radius | 24 mm |
| Mechanical Phase | ±7° |
| Amplitude Stability | ±0.05 dB |
| Weight | 0.052 kg/m |
Main Parameter Indicators
| Parameter | Value |
|---|
| Operating Frequency | DC–67 GHz |
| VSWR | ≤ 1.3 @ 67 GHz |
| Flex Life (Repeated Bending) | 100,000 cycles |
| Operating Temperature | –55°C ~ +125°C |
Features & benefits
- Low insertion loss
- Low VSWR
- Flex, vibration, torsion and tensile resistant
Typical applications
- Laboratory test
- Anechoic chamber test
- System test
- High-precision instrument interconnect
- Field test and measurement
Related parts
Need this cable terminated? Request a custom assembly using KL-220CA.
