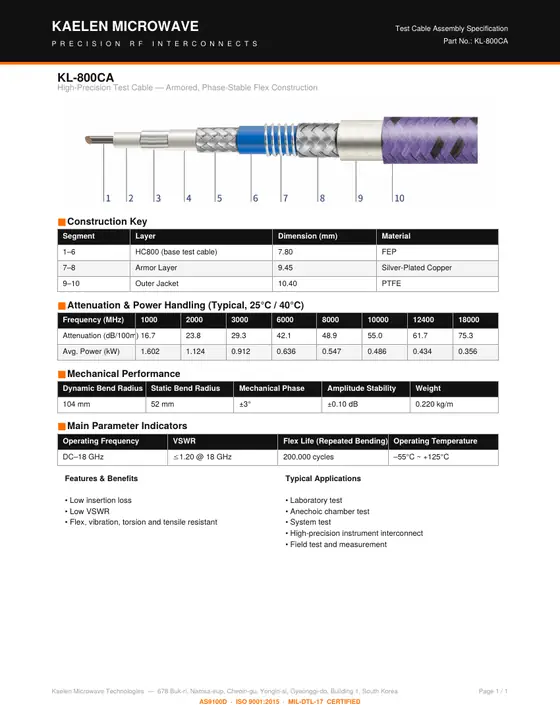

KL-800CA
High-Precision Test Cable — Armored, Phase-Stable Flex Construction
- Frequency
- DC–18 GHz
- Series
- KL-CA · Armored high-precision test cable
- Outer diameter
- 10.4 mm
- Attenuation @ 1 GHz
- 16.7 dB/100 m
Construction Key
Attenuation & Power Handling (Typical, 25°C / 40°C)
| Frequency (MHz) | Attenuation (dB/100m) | Avg. Power (kW) |
|---|
| 1000 | 16.7 | 1.602 |
| 2000 | 23.8 | 1.124 |
| 3000 | 29.3 | 0.912 |
| 6000 | 42.1 | 0.636 |
| 8000 | 48.9 | 0.547 |
| 10000 | 55.0 | 0.486 |
| 12400 | 61.7 | 0.434 |
| 18000 | 75.3 | 0.356 |
Mechanical Performance
| Parameter | Value |
|---|
| Dynamic Bend Radius | 104 mm |
| Static Bend Radius | 52 mm |
| Mechanical Phase | ±3° |
| Amplitude Stability | ±0.10 dB |
| Weight | 0.220 kg/m |
Main Parameter Indicators
| Parameter | Value |
|---|
| Operating Frequency | DC–18 GHz |
| VSWR | ≤ 1.20 @ 18 GHz |
| Flex Life (Repeated Bending) | 200,000 cycles |
| Operating Temperature | –55°C ~ +125°C |
Features & benefits
- Low insertion loss
- Low VSWR
- Flex, vibration, torsion and tensile resistant
Typical applications
- Laboratory test
- Anechoic chamber test
- System test
- High-precision instrument interconnect
- Field test and measurement
